Decision Tree- An Overview

Decision Tree Split Methods

Image by

What is a Decision Tree?

As the name suggest decision tree is a tree like model which is built upside down with its root node at the top. Root node splits into different branches, the branch end that doesn’t split anymore is the leaf node or terminal node. Each root represents a feature, each branch represents decision and each leaf represents an outcome.

Image shows Decision Tree

Decision Tree uses layered splitting process, where at each layer layer it try to split the data into two or more groups and the data that fall into same group are most similar to each other (homogeneous) and groups are as different as possible from each other (heterogeneous).

Different Algorithms To Build Decision Trees

  • ID3 or Iterative Dichtomiser3 calculates the entropy of every attribute of the dataset, splits the dataset into subset using the attribute which has the smallest entropy or largest information gain.
  • CART generates both classification and regression trees. It uses Gini index to split the node unlike ID3 which uses entropy for splitting. CART follows a greedy algorithm which aims only to reduce the cost function.

How Do We Choose The Best Attribute?

  1. ENTROPY: Entropy is the measure of impurity or uncertainty present in the dataset. It controls how a decision tree decide to split the data. Entropy ranges from 0 to 1. Entropy is nearly zero for homogeneous sample which means it is a leaf node though it can’t be divided further. If half of the sample is of positive class and half is of the negative class then entropy is one, very high.

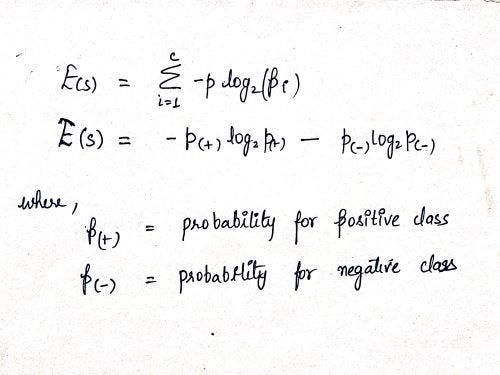

Formula to calculate entropy (left) and the graph showing entropy vs probability (right)

2. INFORMATION GAIN: By calculating entropy measure of each attribute we can calculate their information gain. Information gain measures the reduction in entropy by subtracting the weighted entropies of each branch from the original entropy.

Information Gain is calculated for each attribute in dataset. The attribute that has the largest information gain is selected to split the dataset. Information gain is precisely the measure used by ID3 algorithm.

3. GINI INDEX: Algorithm like CART uses Gini as an impurity parameter. It is a metric to measure how often a randomly chosen element would be incorrectly classified. While building a decision tree, feature which has the least value of Gini index would be preferred. Minimum value for Gini Index is 0. Gini is calculated as -

mathematical expression to calculate Gini Index

Advantages And Disadvantages Of Decision Tree


  1. Decision tree models are easy to explain and even a naïve person can understand logic by its visualization.
  2. It can handle both categorical as well as numerical data and gives better accuracy than other models.
  3. Decision tree is a flexible algorithm as any missing values present in a data doesn’t affect its decision.


  1. A small change in the data can cause a large change in the structure of the decision tree causing instability.
  2. Decision tree often involves higher time to train the model.

That’s it for this story, hope you enjoyed and learned something. If you like this story please give a clap!

Please check out overfitting and underfitting in CART and methods to overcome underfitting and overfitting, if you’re interested in exploring the topic further.

Reference: Wikipedia

Check out my another article :
